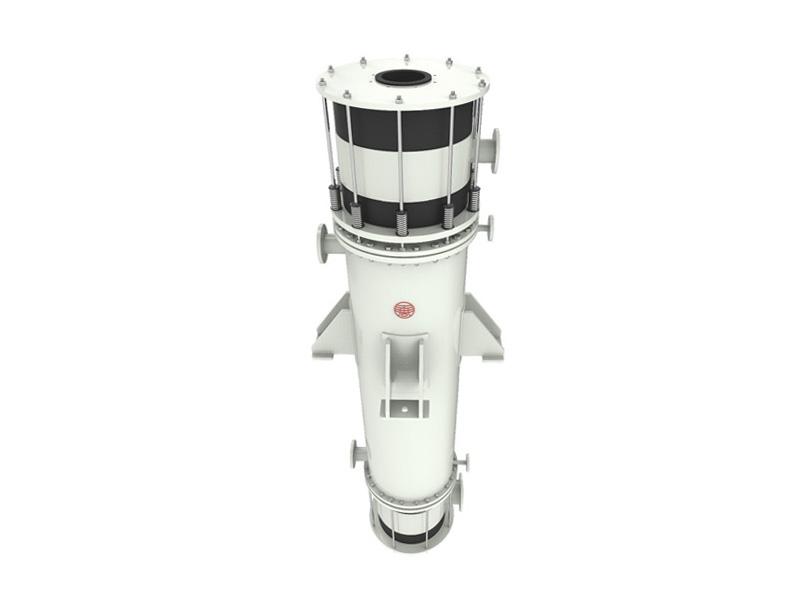

Absorbedor de película descendente de grafito, nuevo tipo bloque redondo con orificios
The New Round Block Hole Graphite Falling Film Absorber efficiently absorbs gases using graphite blocks with hole structures, enhancing heat and mass transfer.
Pago:
TT L/C PayPal Westunion MoneygramOrigen del producto:
China， Anhui provincePuerto de envío:
ShanghaiTiempo de entrega:
1 MonthMoq:
1Paquete:
Wooden caseColor:
customziedMaterial:
GraphiteTemperatura de trabajo:
≤170℃Presión de trabajo:
Vertical≤0.1Mpa,Horizontal≤0.4Mpa
Product review
The structure represents a modified version of the YKX graphite falling film absorber. The absorption heat exchange element features a structure without a central through hole. It is characterized by its compactness, relatively high material utilization rate, and is a gas absorption equipment with outstanding performance.
Product advantages
The New Round Block Hole Graphite Falling Film Absorber provides outstanding corrosion resistance, high thermal conductivity, efficient gas absorption capabilities, durability, and improved heat transfer performance.

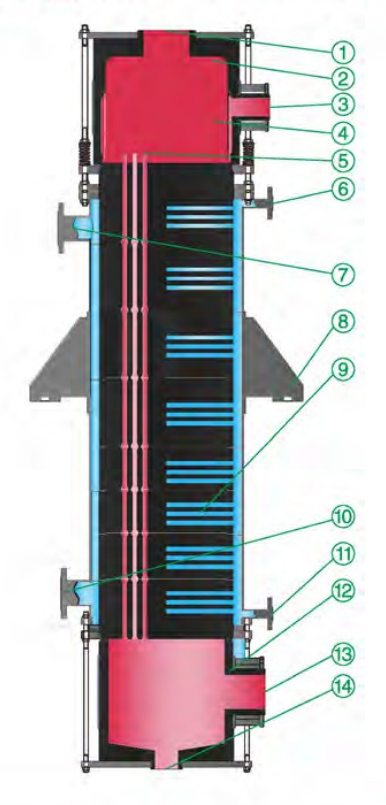

Structural diagram
| Parts details | |
| 1 | Air inlet |
| 2 | Graphite gas-liquid mixing chamber |
| 3 | Liquid inlet |
| 4 | Graphite pressure stabilizing ring |
| 5 | Graphite distribution head |
| 6 | Vent |
| 7 | Cooling water outlet |
| 8 | Equipment support |
| 9 | Graphite heat exchange block |
| 10 | Cooling water inlet |
| 11 | Drain port |
| 12 | Gas liquid separation chamber |
| 13 | Tail gas outlet |
| 14 | Acid outlet |

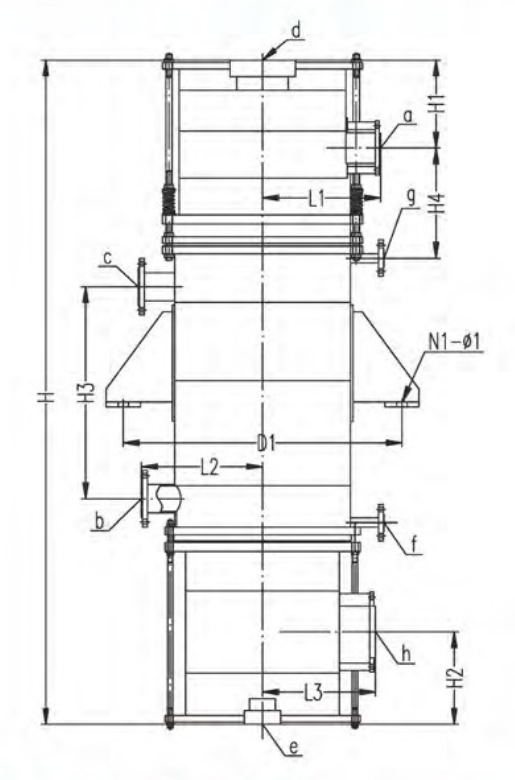

Drawing Specification Table for Tube
| Model | a.e Tube | b.c Tube DN | f.g Tube DN | d Tube | h Tube | |||
| D1 | D2 | D3 | D4 | D5 | D6 | |||
| KXG40 | 65 | 160 | 50 | 20 | 150 | 295 | 75 | 180 |
| KXG50 | 75 | 180 | 65 | 20 | 200 | 350 | 100 | 210 |
| KXG60 | 100 | 210 | 80 | 20 | 250 | 400 | 125 | 240 |
| KXG70 | 100 | 210 | 100 | 25 | 250 | 400 | 200 | 350 |
| KXG80 | 125 | 240 | 100 | 25 | 300 | 460 | 250 | 400 |
| KXG90 | 125 | 240 | 150 | 25 | 300 | 460 | 250 | 400 |
Others
Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.
