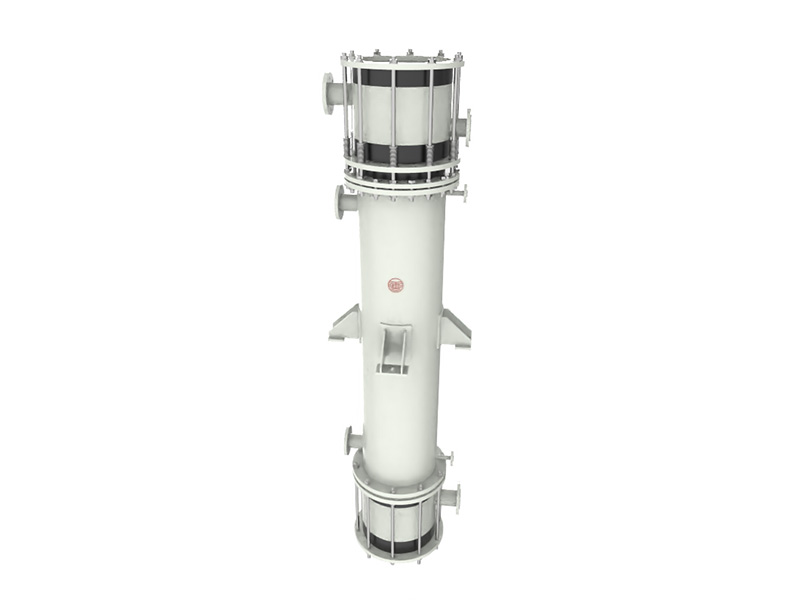

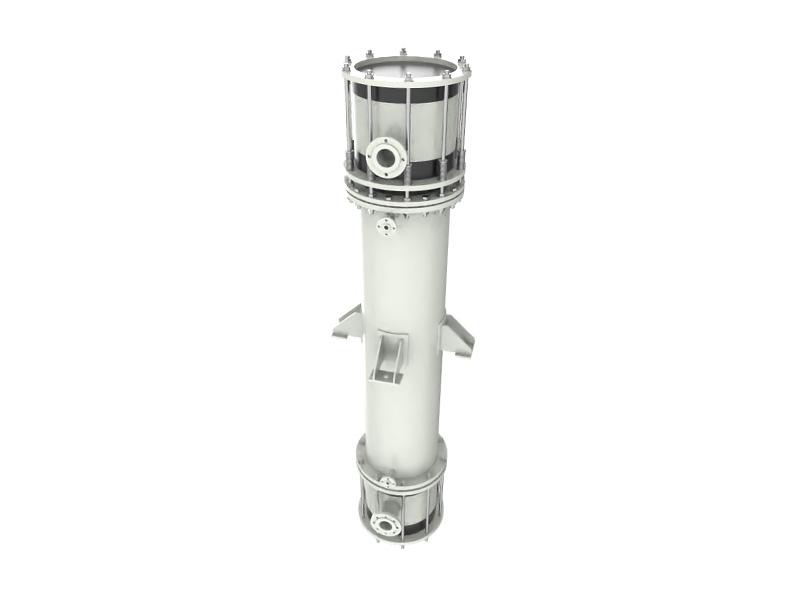

Absorbedor de película caída de grafito tipo agujero redondo
The round block hole graphite falling film absorber efficiently cools and absorbs gases using a vertical, corrosion-resistant graphite structure with uniform liquid distribution.
Pago:
TT L/C PayPal Westunion MoneygramOrigen del producto:
China， Anhui provincePuerto de envío:
ShanghaiTiempo de entrega:
1 MonthMoq:
1Paquete:
Wooden caseColor:
CustomziedMaterial:
GraphiteTemperatura de trabajo:
≤170℃Presión de trabajo:
Vertical≤0.1Mpa,Horizontal≤0.4Mpa
Product review
Its structure and principle bear resemblance to those of tubular graphite falling film absorbers. Besides possessing the same characteristics as the tube-type graphite falling film absorber, it also offers the advantages of high structural strength, excellent heat shock resistance, high heat transfer efficiency, and convenient maintenance. It is a gas absorption equipment with outstanding performance.
Product advantages
The Round Block Hole Graphite Falling Film Absorber features high heat transfer efficiency, outstanding chemical corrosion resistance, good mechanical strength, uniform fluid distribution, large processing capacity, stable operation, easy maintenance, and a long service life.

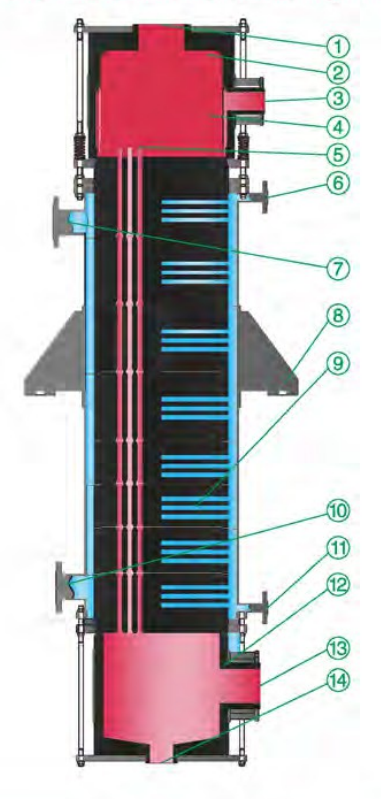

Structural diagram
| Parts details | |
| 1 | Air inlet |
| 2 | Graphite gas-liquid mixing chamber |
| 3 | Liquid inlet |
| 4 | Graphite pressure stabilizing ring |
| 5 | Graphite distribution head |
| 6 | Vent |
| 7 | Cooling water outlet |
| 8 | Equipment support |
| 9 | Graphite heat exchange block |
| 10 | Cooling water inlet |
| 11 | Drain port |
| 12 | Gas liquid separation chamber |
| 13 | Tail gas outlet |
| 14 | Acid outlet |

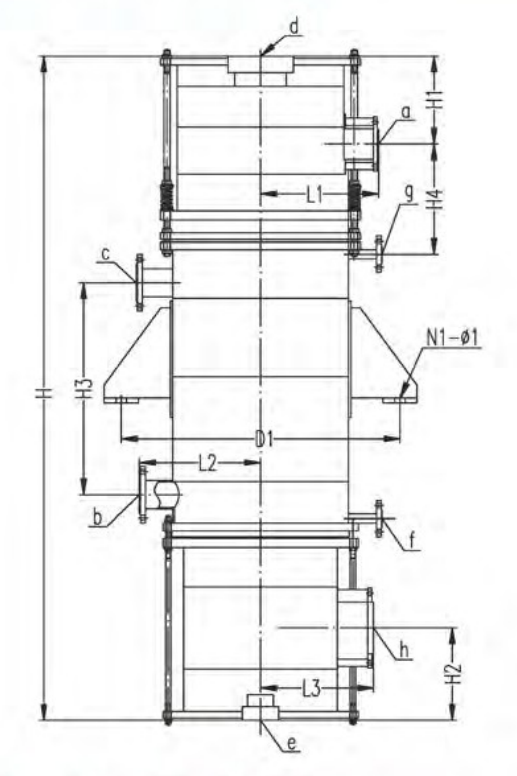

| Model | Specifications M² | a.e Tube | b.c Tube DN | f.g Tube DN | d Tube | h Tube | |||
| D1 | D2 | D3 | D4 | D5 | D6 | ||||
| YKX30 | 5 | 50 | 145 | 50 | 20 | 100 | 210 | 65 | 160 |
| YKX40 | 10 | 65 | 160 | 50 | 20 | 150 | 295 | 75 | 180 |
| YKX50 | 12 | 75 | 180 | 65 | 20 | 200 | 350 | 100 | 210 |
| 15 | |||||||||
| YKX60 | 20 | 100 | 210 | 80 | 20 | 250 | 400 | 125 | 240 |
| 25 | |||||||||
Shell and tube graphite falling film absorbers are specialized devices used in various industrial applications for their excellent thermal and chemical resistance properties. These absorbers are designed to efficiently absorb gases while providing effective cooling and separation processes.
Detalles
The Shell and Tube Graphite Falling Film Absorber efficiently absorbs gases using corrosion-resistant graphite, ensuring uniform liquid distribution and optimal heat transfer.
Detalles
The New Round Block Hole Graphite Falling Film Absorber efficiently absorbs gases using graphite blocks with hole structures, enhancing heat and mass transfer.
Detalles
The shell-and-tube silicon carbide heat exchanger is composed of silicon carbide tubes sealed with tube sheets to form a tube bundle placed inside a cylindrical shell. Ends are equipped with end caps. One fluid flows inside the tubes and the other outside. It's suitable for highly corrosive chemicals, used for cooling, heating, condensation, etc.
Detalles
La bomba de accionamiento magnético autocebante ZCQ ofrece un funcionamiento sin fugas, resistencia a la corrosión y autocebado eficiente para una transferencia segura de fluidos químicos y farmacéuticos.
Detalles

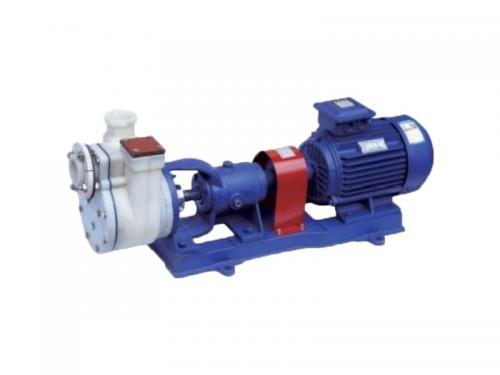

La bomba autoensamblable WFB Sealles garantiza un funcionamiento suave, control automático y autoensamblaje eficiente para fluidos corrosivos o peligrosos, garantizando seguridad y bajo mantenimiento en aplicaciones industriales.
